Highly Conductive Ink Based on Self-Aligned Single-Walled Carbon Nanotubes through Inter-Fiber Sliding in Cellulose Fibril Networks

윤창훈 교수 2024. 8. 30. 10:42

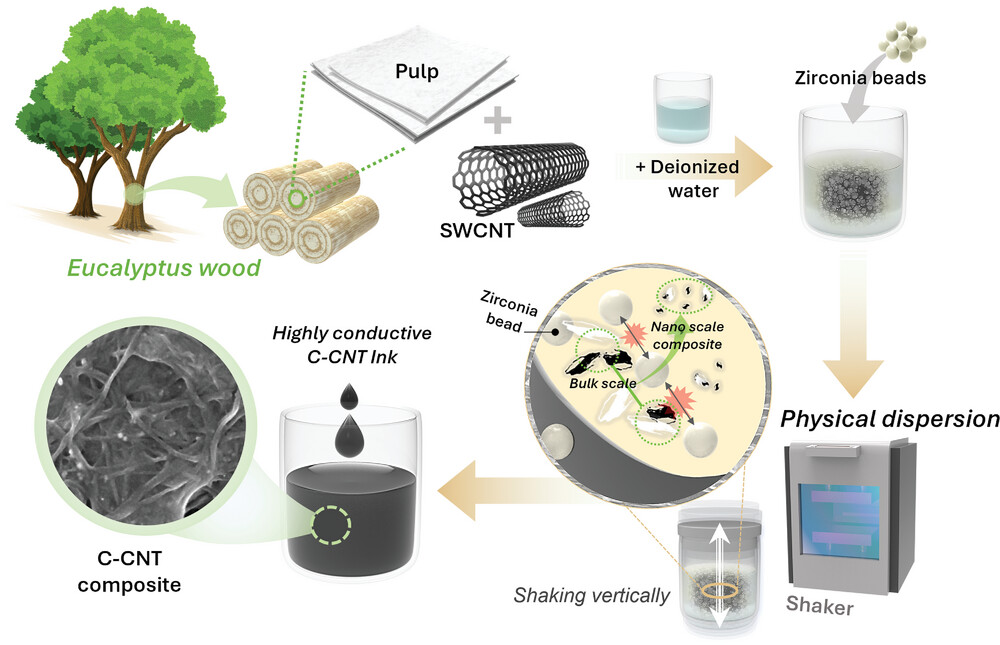

Carbon nanotubes (CNTs), owing to their superior electrical and mechanical properties, are a promising alternative to nonmetallic electrically conducting materials. In practice, cellulose as a low-cost sustainable matrix has been used to prepare the aqueous dispersion of cellulose-CNT (C-CNT) nanocomposites. However, the compatibility with conventional solution-processing and structural rearrangement for improving conductivity has yet to be determined. Herein, a straightforward route to prepare a conductive composite material from single-walled CNTs (SWCNTs) and natural pulp is reported. High-power shaking realizes the self-alignment of individual SWCNTs in a cellulose matrix, resulting from the structural change in molecular orientations owing to countless collisions of zirconia beads in the aqueous mixture. The structural analysis of the dried C-CNT films confirms that the entanglement and dispersion of C-CNT nanowires determine the mechanical and electrical properties. Moreover, the rheological behavior of C-CNT inks explains their coating and printing characteristics. By controlling shaking time, the electrical conductivity of the C-CNT films with only 9 wt.% of SWCNTs from 0.9 to 102.4 S cm−1 are adjusted. the optimized C-CNT ink is highly compatible with the conventional coating and printing processes on diverse substrates, thus finding potential applications in eco-friendly, highly flexible, and stretchable electrodes is also demonstrated.



https://onlinelibrary.wiley.com/doi/10.1002/advs.202402854
